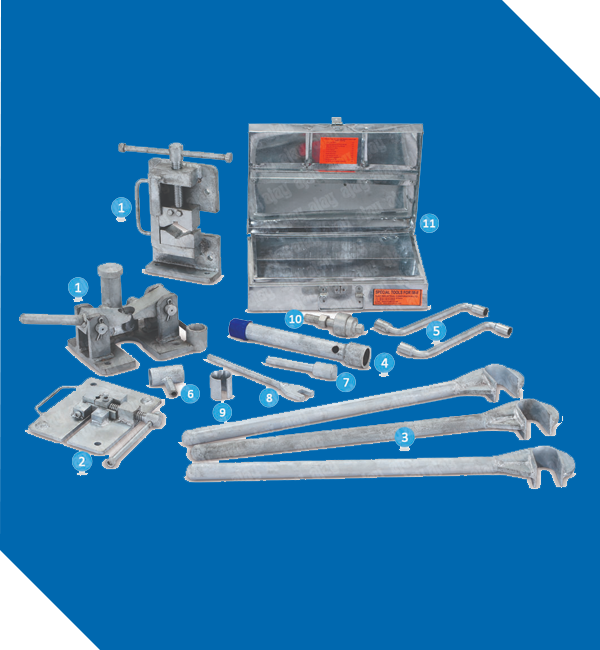

SPECIAL TOOL KIT FOR INDIA MARK HAND PUMP
-One Each Self Locking Clamp Or Heavy Duty Clamp For 32 mm NB GI Pipe
-One Each Connecting Rod Vice
-Three Each Pipe Lifting Spanner
-Once Each Water Tank Lifter
-Two Each Crank Spanner(M17 X M 19)
-One Each Connecting Rod Lifter
-One Each Handle Axle Punch
-One Each Rod Coupling Spanner
-One Each Chain Coupler Supporting Tool
-One Each Bearing Pressing/Mounting Tool
-One Each Mild Steel Galvanized Tool Box with Locking Arrangement.
-(To Accommodate Items except 1 & 3)
S. No. | Item Description | Quantity |
1 | Button die with die holder in high speed steel, M12x1.75 | 1 |
2 | Thread tap in high speed steel with handle, M-12 x 1.75 | 3 |
3 | Pipe Thread die with die stock 32mm | 1 set |
4 | Pipe wrench 600mm as per IS:4003/Part I 1978 | 2 |
5 | Pipe wrench 450mm as per IS:4003/Part I 1978 | 1 |
6 | Double ended open jaw spanner 17 x 19mm in CV steel | 2 |
7 | Ring Spanner for M6 nut | 2 |
8 | Screwdriver 250mm x 8mm dia | 1 |
9 | Adjustable spanner 250mm | 1 |
10 | Ball peen hammer with handle (1kg approx.) | 1 |
11 | Hack saw frame with six spare blades, 300mm | 1 |
12 | Flat file with handle, rough, 250mm | 1 |
13 | Wire Brush, fine wire | 1 |
14 | Lubricating oil in plastic can with nozzle outlet | 200 mL |
15 | Multipurpose grease in packet container | 1/2 kg |
16 | Nylon rope, 3 mm | 75 metre |
17 | Spirit level 300mm | 1 |
18 | Tool Box suitable to accommodate the above items with locking arrangement except items 1, 2 & 3 | 1 |
Special tools for India Mark II 32mm Hand pumps as per IS:9301
S. No. | Item Description | Quantity |
1 | Heavy Duty clamp/Self Locking Clamp for 32mm NB pipe | 1 |
2 | Pipe Lifting spanner for 32mm NB pipe | 3 |
3 | Water tank lifter for 32mm NB Pipe | 1 |
4 | Connecting rod clamp | 1 |
5 | Coupler spanner | 1 |
6 | Connecting rod lifter | 1 |
7 | Handle axle punch | 1 |
8 | Crank spanner – 17 x 19 | 2 |
9 | Chain coupler supporting tool | 1 |
10 | Bearing pressing tool | 1 |
11 | Tool Box for above items with locking arrangement to accommodate all above items except 1 & 2 | 1 |
